FLEXIBLE SINGLE-CORE CABLES

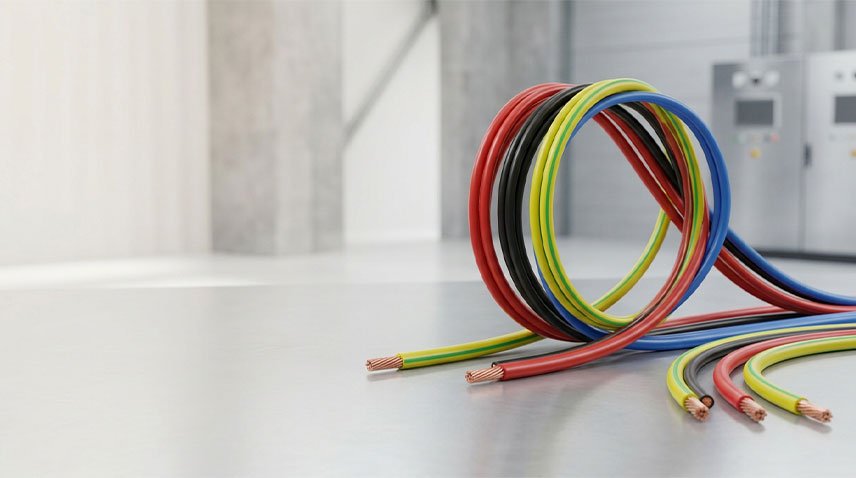

Flexible Single-Core Cables

Single Core Cables with Flexible Copper Conductors and PVC Insulated

Voltage Rating 220/750 V

PRODUCT INFORMATION

Construction Single Core Cables

Conductor Flexible Copper Conductors

Insulation PVC Insulated

Conductor Type Soft Annealed Copper Fine Wires

Temperature 70 C or 90 C

Installation Indoor Fixed Installations

Environment Dry Locations

Flexibility Where Particular Flexibility Is Required

TECHNICAL SPECIFICATIONS

Nominal Core Sectional Area (mm²)	Temperature	Current Rating in Air (A)	Free In Pipes (A)	Number of Cores × Number of Wires
1.5	70	20	15	1*1
2	70	22	17	1*1
2.5	70	28	22	1*1
3	70	31	24	1*7
4	70	37	26	1*7
6	70	46	33	1*7
10	70	66	47	1*7
16	70	87	62	1*7
25	70	118	81	1*19
35	70	147	100	1*19
50	70	197	122	1*19
70	70	230	151	1*19
95	70	289	191	1*19
120	70	337	219	1*37
150	70	385	252	1*37
185	70	449	288	1*37
240	70	542	345	1*61

APPLICATIONS

Suitable for indoor fixed installations in dry locations, particularly where flexibility is required.

Suitable for indoor fixed installations in dry locations.

Suitable for electrical panels connection and electrical apparatus.

Suitable where particular flexibility is required and can be laid in groups around steel sheets.

Installation Environment Dry Locations
